Our Medium Intensity Aircraft Warning Lights range is composed of 5 versions:

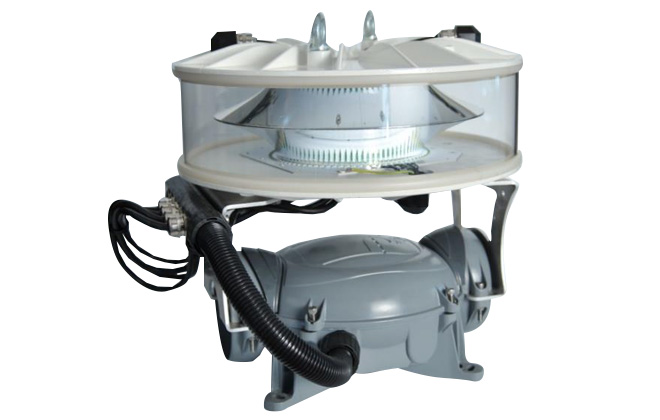

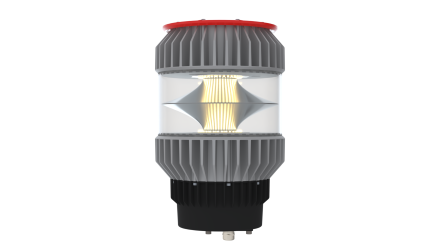

Type A white flashing (20 000 Cd in day mode, and 2 000 Cd in night mode)

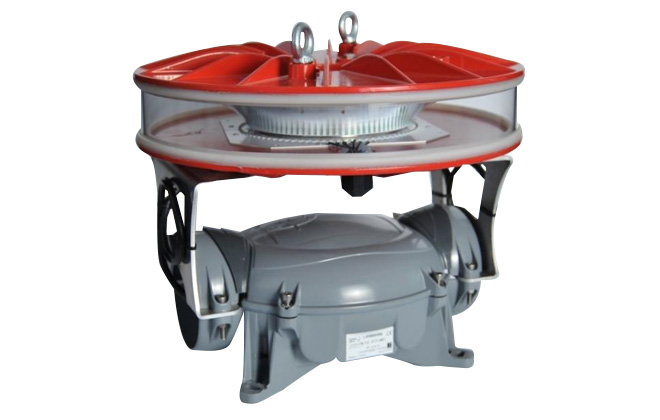

Type B red flashing (2 000 Cd in night mode)
Type C red steady burning (2 000 Cd in night mode)

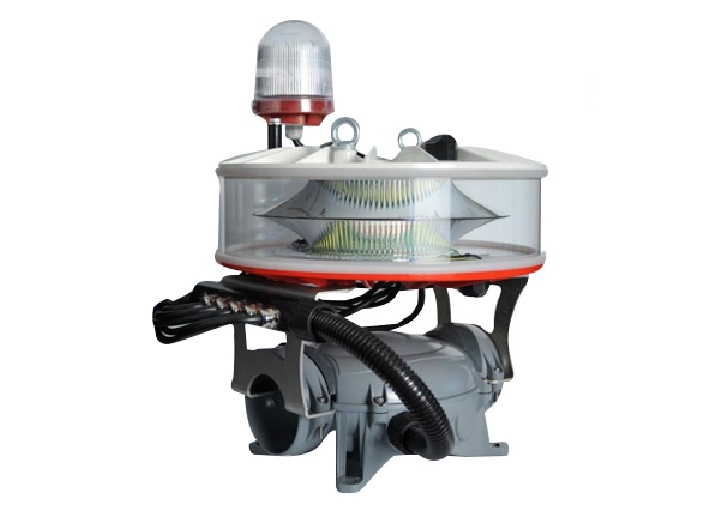

Type A&B white flashing (20 000 Cd in day mode) and red flashing (2 000 Cd in night mode)
Type A&C white flashing (20 000 Cd in day mode) and red steady burning (2 000 Cd in night mode)
Our LEDEO Medium Intensity Lights are functioning with Led Technology.
That technology allows us to develop sturdier, watertight (IP66) and very low-consuming lights with a long lifetime (100 000 hours).
Our products also benefit from integrating important options such as the photocell when a nocturnal lighting is needed, and the dry contact.
And for a complete solution, Delta Box offers Power Supply Cabinets, Uninterruptible Power Supplies (UPS) and Solar Power Supplies.
The different product applications
Rules concerning aircraft beaconing are established by the ICAO (Annex 14, Chapter 6). Our Medium Intensity Lights are all certified and homologated by the Civil Aviation (ICAO) and can be installed on every obstacle between 45 and 150M of height (Pylons, Civil Engineering Structures, Buildings, Cranes, and Chimneys).
For obstacles that tall it is recommended to plan an illumination on various levels, with Medium Intensity Light at the top, and Low Intensity Light Type B at the intermediate level.
Also, according to the rules, an uninterruptible power supply cabinet has to be installed to insure a 12-hour beaconing in case of power supply failure.
In the table below are shown the different references of Medium-Intensity Lights that we produce. By clicking on the image you will have instant access to the technical file of the product.
