Markings for High Voltage Lines

Led OBSTRUCTION MARKING

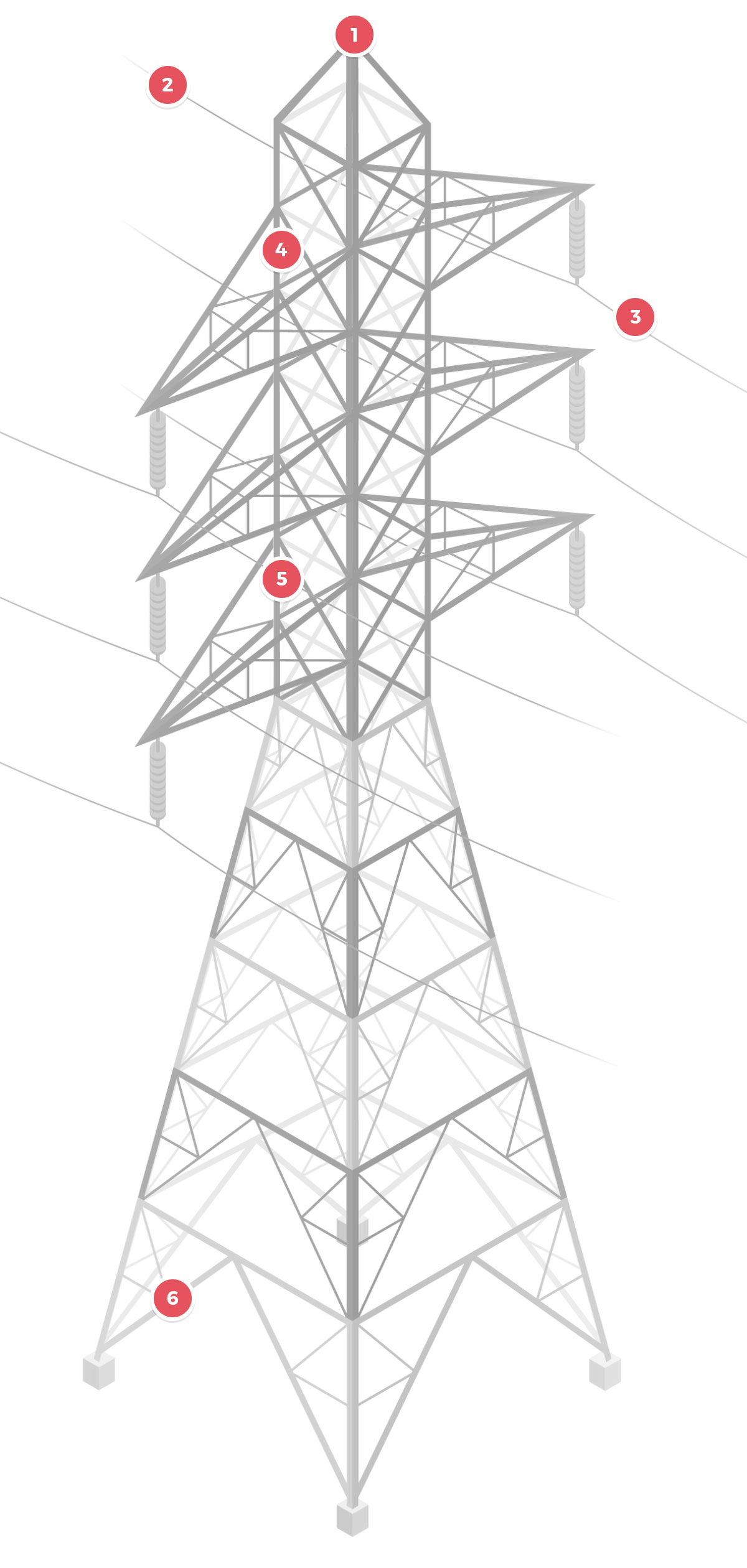

Height of the obstacle

Day Marking
delta-box_applications_warning-light-table-picto-sun

(If pylon painted in Red & White)

Night Marking
delta-box_applications_warning-light-table-picto-moon

Over 150 meters

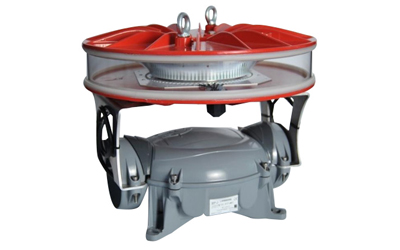

Type B High-Intensity at the top, at the lowest level of the wire suspensions and halfway up of those levels.

90 – 150 meters

45 – 90 meters

0 – 45 meters

Type A Medium Intensity, at the top and at the intermediary level if the height is superior to 90 meters

Type B, Medium Intensity at the top and at the intermediary level

– Type B, Medium Intensity
– Type B, Low Intensity at the intermediary level

– Type A, Low Intensity

Wire Marking

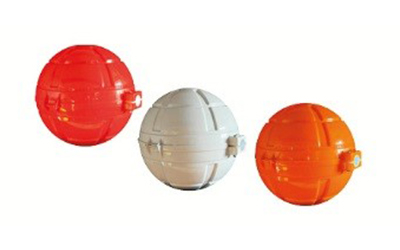

Diurnal Warning Sphere on wire (every 30m)

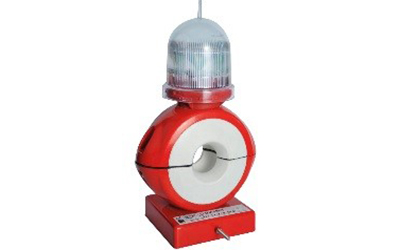

Type A, Low Intensity (every 70 meters in airport areas, every 105 meters otherwise)

Uninterruptible Power Supply Cabinet guarantying a power supply during a minimum of 12 hours in case of power failure.

We also offer

Solar station adapted to the site

Light synchronization by GPS, wire, TCP/IP, fibre optics, GSM…

Default notification via dry contact, TCP/IP, Fibre Optics, GSM…
