Wind Direction Indicators ICAO/STNA

Our tiltable, red and white ICAO/STNA Wind Indicator Masts are 7,40m tall and can be customized on request :
With a windsock of diameter 50, 60, 90 or 100 cm.
With an internal lighting system (inside the windsock only), or a complete illumination comprising the top-mast obstruction light.

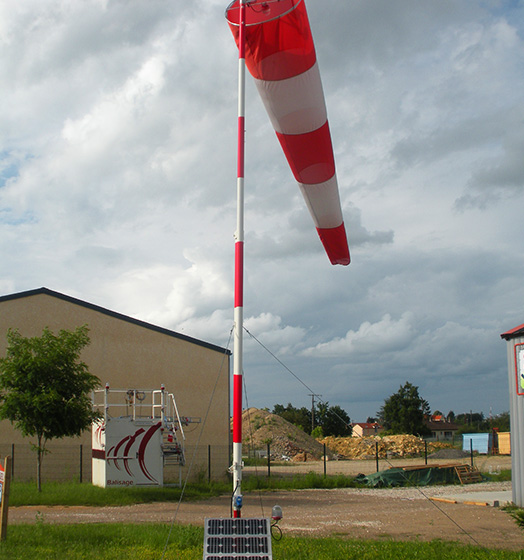

With various power supplies: direct current 24-48V, alternative current 110-240V, 6.6 Amps current loop or complete solar power supply system.
Our windsock lightings and top-mast LEDEO Low-Intensity Lights are working with LED Technology.
That technology allows us to provide sturdy and watertight systems with a long lifetime (100 000 Hours) and with low consumption.

The different product applications

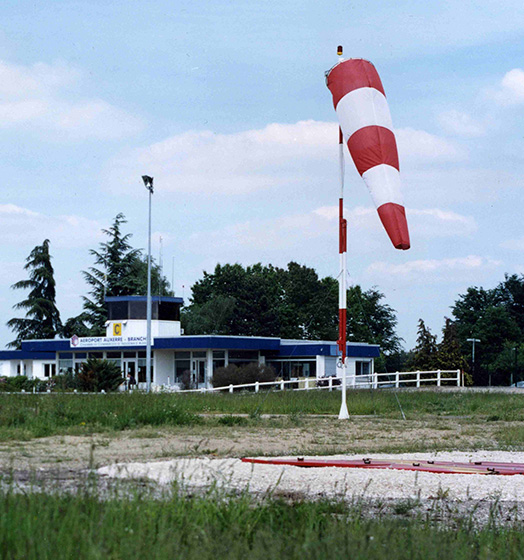

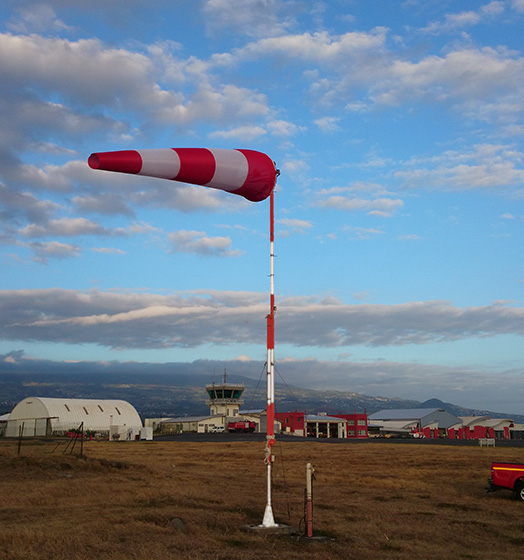

Our ICAO/STNA Wind Direction Indicators comply with the Civil Aviation rules regarding Air Navigation and can be installed on the ground, on buildings or on façades, thanks to the suggested options.

For a complete solution, Delta Box also offers the windsocks with the red and white corresponding colour

delta-box_marking_picto-aircraft-warning-lights-airport-and-heliport
delta-box_marking_picto-aircraft-warning-lights-for-buildings

The technical characteristics

Mechanical
Height
7.40 meters
Tiltable part
Yes
Protection
Galvanised steel
Paint
Red & White
Mounting
Anchorage Block (included)
Wind vane
Diameter 60 (Helistation)
Diameter 100 (Airport)
Braces
3 x 120 cm
Anchorage Block
600 x 600 x 800 mm
Environmental
Humidity
100%
Frost
-60°C
Wind speed
160 Km/h
Certifications
CE
EN60947-1
CEI60364, NF C15-100
2014 / 35 / UE
ICAOI
Annex 14, Volume I, Chapter 6
Quality
ISO 9001 ; 2008
Warranty
Warranty period
1 year
Options
Internal lighting
Obstacle light
Frangibility
Stainless steel / Aluminium
Reinforced mast

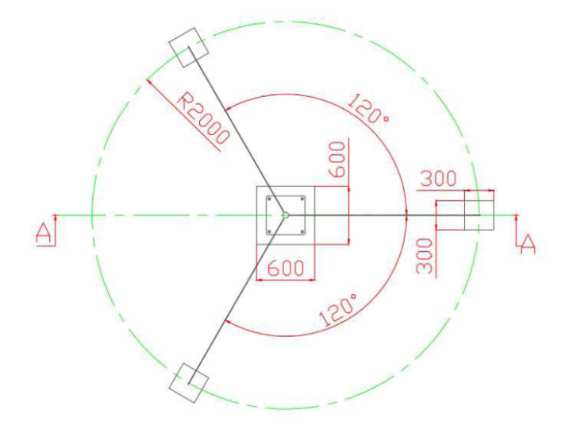

Dimensions

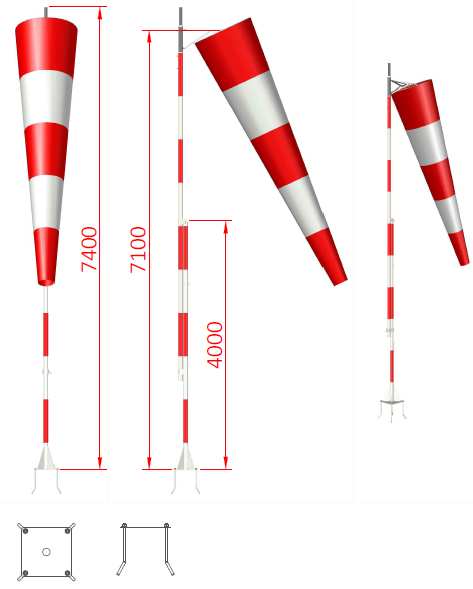

delta-box_wind-direction-indicator-icao-stna-dimensions-01

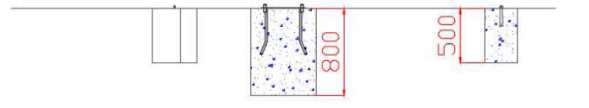

delta-box_wind-direction-indicator-icao-stna-dimensions-02

Available accessories for installation

Windsock, solar power supply, external/internal lighting, frangibility
