Portable beacon light for runways and taxiways within Airports

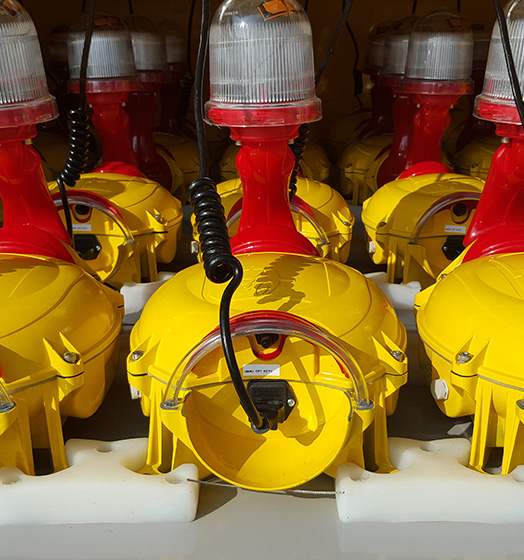

Our portable beacons perform as one-piece autonomous systems working with Multi-LEDs technology and are dedicated to various applications for runways and taxiways within the Airport sector. They function with an internal battery which grants an autonomy of 40 to 120 hours according to the chosen setup. Their compact design eases their handling for a quick and easy installation. Also, the integration of the charger, directly inside the box of the light, enables a very modular use as it can be charged from a classical local power supply, in record time (6 hours of charging).

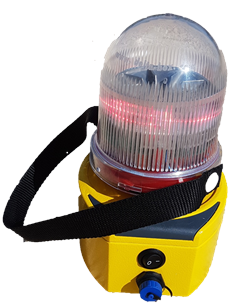

Our small portable beacon has an external charger allowing the simultaneous charge of 8 lights (1h15 of charge per light equals 10 hours for 8 beacons).

Many other features are available (multi-colors, flash, remote control, transport and charging trailer, integrated photocell…) and it can also be associated to a 6.6A loop (without batteries).

The different product applications

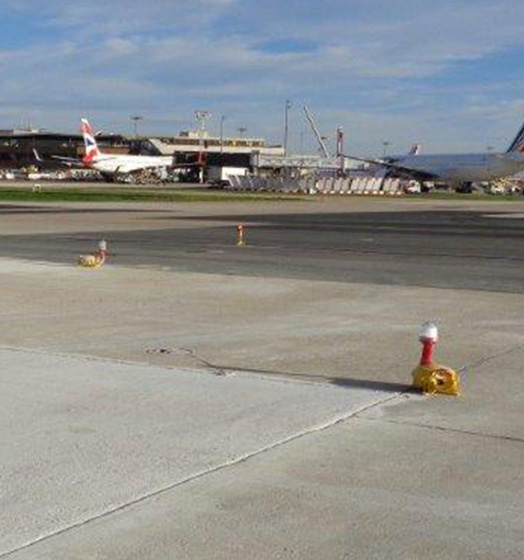

Our portable beacon benefits from an all-around scope of application within the Airport sector. It can be used as temporary marking in works areas as well as temporary replacement marking on runway edges or runway closings.
Finally, it can also be used for temporary illumination of aerodrome runways, or every other kind of marking.

delta-box_marking_picto-aircraft-warning-lights-airport-and-heliport

The technical characteristics

LUMINOUS
Portable Beacon
Small Portable Beacon
Luminous source
LEDs
LEDs
Color
Red, white, blue or green
Red, blue
Horizontal beam
360°
360°
Vertical beam
10°
10°
Luminous intensity
> 10 Cd
> 10 Cd
MTBF
100 000 Hours
100 000 Hours
ELECTRICAL
Load vontage
110 up to 240V
110 up to 240V
Functioning temperature
-55°C to +55°C
-55°C to +55°C
Autonomy
80-120 Hours
40-80 Hours
Loading time
6 Hours
1,5 Hours
Battery
Waterproof lead gel 12V 7Ah
Waterproof lead gel 12V 1,2Ah
Protection class
IP66
IP66
MECHANICAL
Body material
Zamac
Aluminium cast
Body lamp material
Composite
Composite
Lens material
Polycarbonate
Polycarbonate
Mounting
M8 screw
M8 screw
High
420mm
222mm
Weight
< 5 Kg
<2,5 Kg
ENVIRONMENTAL
Humidity
100%
100%
Frost
-60°C
-60°C
Wind speed
160 Km/h
160 Km/h
CERTIFICATIONS
CE
EN60947-1
CEI60364, NF C15-100
2014 / 35 / UE
EN60947-1
CEI60364, NF C15-100
2014 / 35 / UE
Quality
ISO 9001 ; 2008
ISO 9001 ; 2008
WARRANTY
Warranty period
2 years
2 years

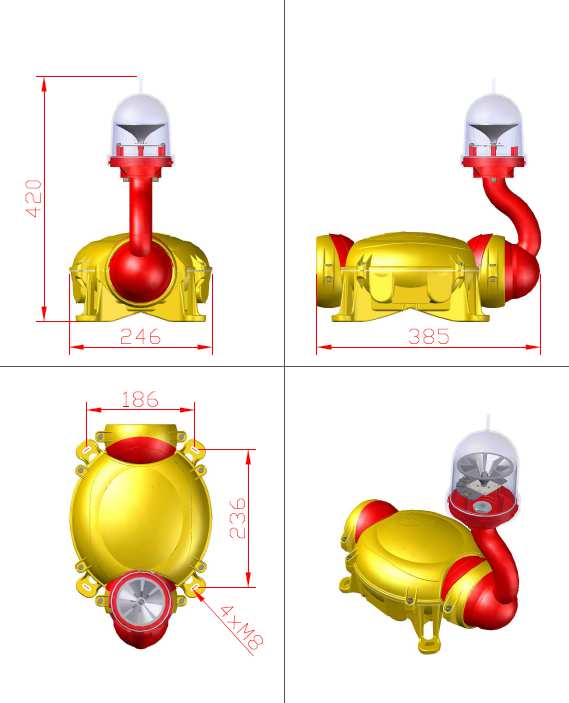

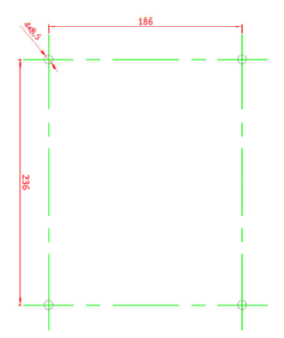

Dimensions

delta-box_marking_airfield-portable-beacon-dimensions-01

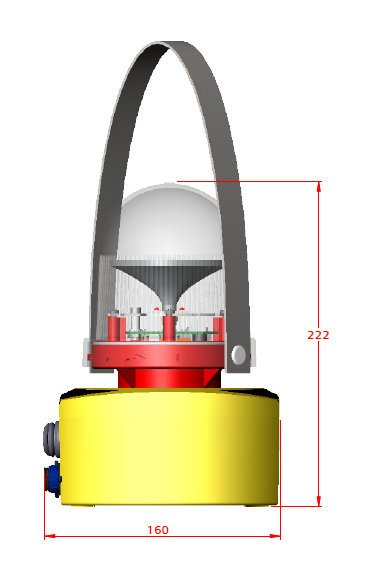

BPM plan

Available accessories for installation

Trailer for charging and stocking the beacons, lit up at night, for 40 or 60 beacons
Wireless remote control (range of 500m), wired connection and bluetooth are also available, PCL control possible.
Individual dual colors for a 360° beam (example red or blue)
Simultaneous dual colors for a 180° beam
Chaining of the beacons for a 230V power supply
Multi-beacons charger
Solar station
Stainless steel fixation kit
