Wind Direction Indicators FAA

Our tiltable, orange FAA Wind Direction Indicator can be customized on request :

  • With a windsock of diameter 30, 45, 60, 90 or 100 cm.
  • With a height of 3 or 6 meters.
  • With an external lighting by 4 floodlights or with complete illumination comprising the top-mast obstruction beacon.
  • With various power supplies: direct current 24-48V, alternative current 110-240V, 6.6 Amps current loop or complete solar power supply system.

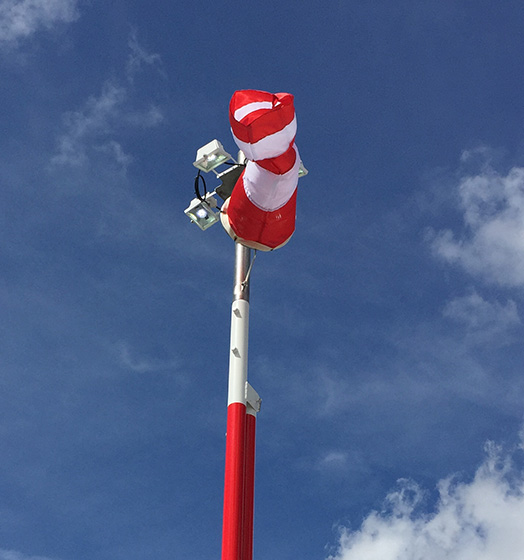

Our lighting projector for windsocks and top-mast Low-Intensity Light are working with LED Technology.
That technology allows us to provide sturdy and watertight systems with a long lifetime (100 000 Hours) and with low consumption.

The different product applications

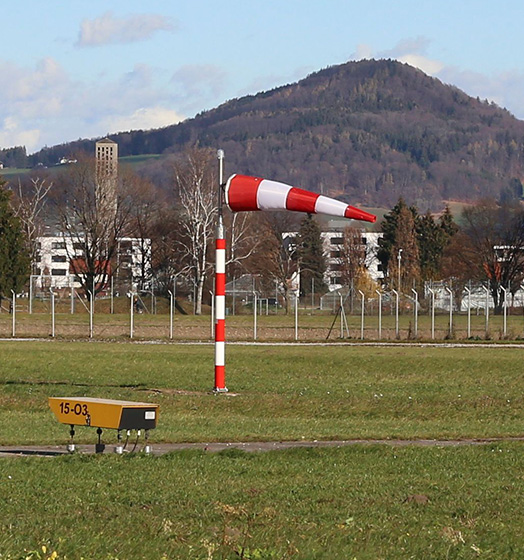

Our FAA Wind Direction Indicators comply with the American Rules of the FAA and can be installed on the ground, on buildings or on façades, thanks to the different fixation plates available.

For a complete solution, Delta Box also offers the windsocks with the orange corresponding colour.

delta-box_marking_picto-aircraft-warning-lights-airport-and-heliport
delta-box_marking_picto-aircraft-warning-lights-for-buildings
delta-box_marking_picto-aircraft-warning-lights-for-stacks

The technical characteristics

Obstacle light
Light source
LEDs
Color
Red
Horizontal beam
360°
Vertical beam
10°
Luminous Intensity
> 10 Cd
MTBF
100 000 Hours
Electrical
Power supply
6.6A / 230V / 12V (Solar)
Operating Temperature
-55°C to +55°C
Consumption
3 Watts (obstacle light)
30 Watts (external lighting)
Protection
IP66
Mechanical
Height
3 or 6 meters
Tiltable
Base (3m) / Middle (6m)
Protection
Galvanised steel
Paint
Orange
Mounting
Anchorage block
Preformed wind vane
30 / 60 / 90 cm
Braces
No
Concrete block
600 x 600 x 800 mm
Environmental
Humidity
100%
Frost
-60°C
Wind speed
240 Km/h
Certifications
FAA
Compliant
Quality
ISO 9001 ; 2008
Warranty
Warranty period
1 year
Options
Reinforced mast
Obstacle Light
External lighting by 4 Leds Floodlights (230V ou6.6A)
Painting
Frangibility of the mast
Solar power supply
Stainless steel / Aluminium / Fiber Glass manufacture

Dimensions

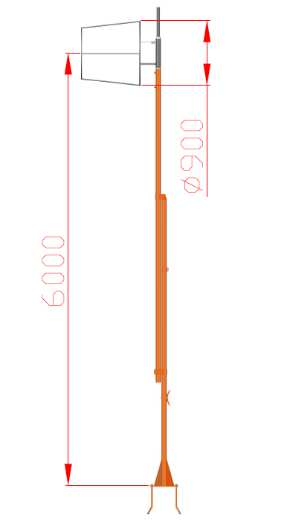

delta-box_wind-direction-indicator-faa-dimensions-03

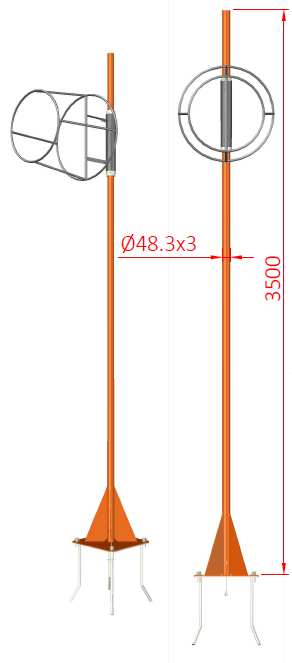

delta-box_wind-direction-indicator-faa-dimensions-01

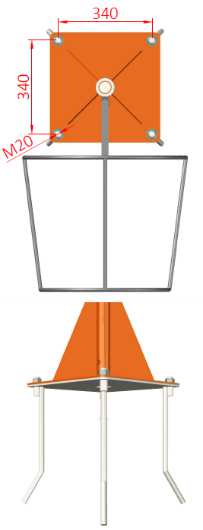

delta-box_wind-direction-indicator-faa-dimensions-02

Available accessories for installation

Windsock, solar power supply
