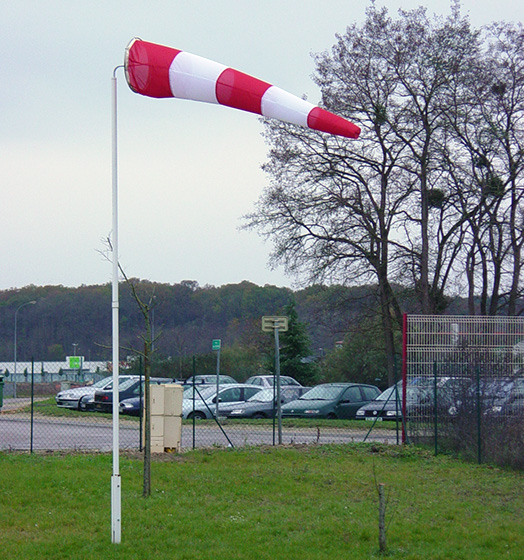

Simple mast Wind Direction Indicator

Our Simple Wind Direction Indicators are composed of a stationary/tiltable system with a height of 4m along with a stainless steel wind vane of diameter 30, 40 or 50 cm.

If necessary, the illumination of the windsock can be made from the ground with external projectors.

The design of our masts allows a quick and easy set-up.

The different product applications

Our Simple Wind Direction Indicators are principally destined to industries and SEVESO classified sites. They can be installed on the ground or on top of buildings.
For a complete solution, Delta Box also offers the windsocks with a red and white corresponding colour.

delta-box_marking_picto-aircraft-warning-lights-for-stacks
delta-box_marking_picto-aircraft-warning-lights-for-buildings
delta-box_marking_picto-aircraft-warning-lights-for-stacks

The technical characteristics

Mechanical
Height
4 meters
Tiltable part
Fixe or tiltable
Protection
Galvanized steel
Paint
White
Mounting
In “U”
Wind vane
Diameter 30
Diameter 40
Diameter 50
Braces (fixed version)
3 x 120 cm
Anchorage Block
600 x 600 x 800 mm
Environmental
Humidity
100%
Frost
-60°C
Wind speed
160 Km/h
Certifications
CE
EN60947-1
CEI60364, NF C15-100
2014 / 35 / UE
OACI
Compliant
Quality
ISO 9001 ; 2008
Warranty
Period of warranty
1 year

Dimensions

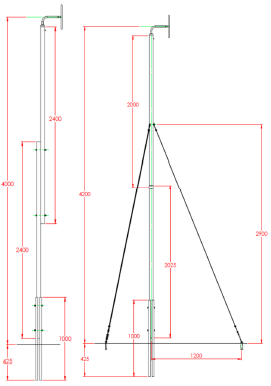

delta-box_simple-mast-wind-direction-indicator-dimensions-01

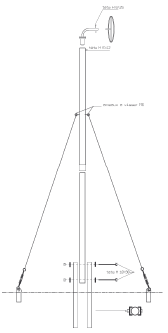

delta-box_indicateur-vent_mats-indicateurs-de-vents-dimensions-03

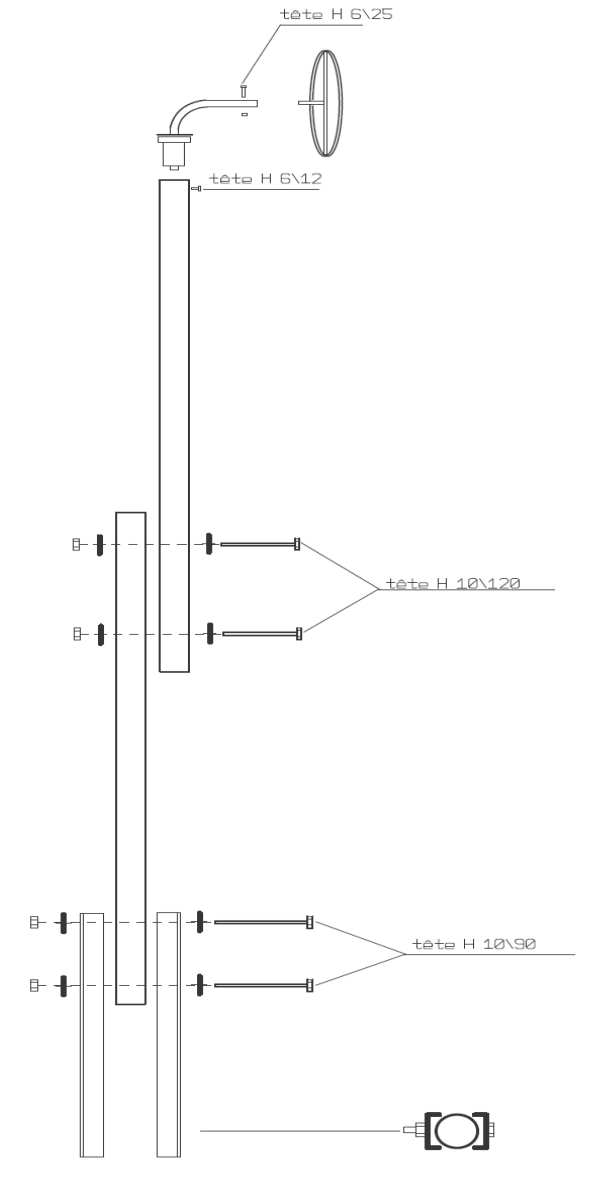

delta-box_simple-mast-wind-direction-indicator-dimensions-02

Available accessories for installation

Windsock
