BHT marking light for High Voltage Lines



Our BHT beacon destined to signalize the High-Voltage Lines is, by its technology, a unique product on the market.

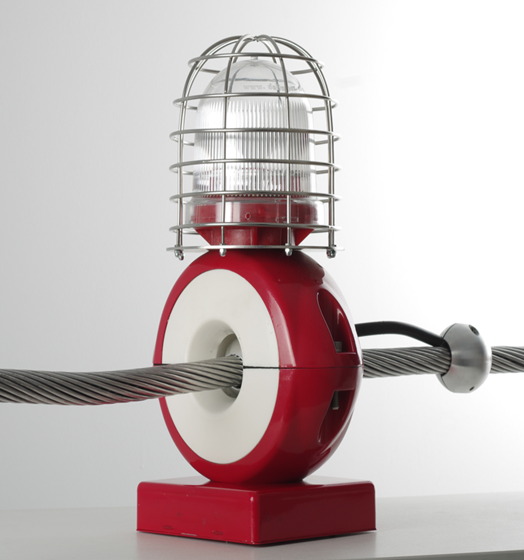

Indeed, our conductor marking light takes its power from the current of the line, by the intermediary of a multi-winding transformer directly installed within the beacon. This allows our BHT to adapt to every line voltage.

The luminous part is identical to our Low-Intensity range. The same Multi-LEDs technology is used in order to offer a long lifetime (100 000 Hours), and a strong sturdiness and waterproofness.

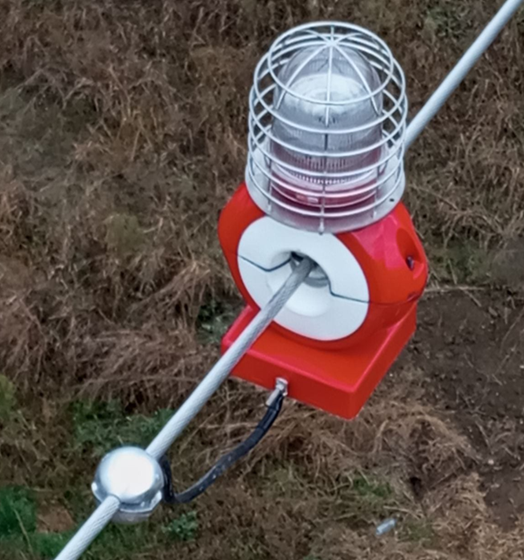

Moreover, we developed the conductor marking light in a wish to make easier its installation on the electric line, solely realized via the fixation of a very specific spherical nut on which the light is going to stand.
The weight of the beacon is spread out towards below and allows the light to be self-centred on the line.

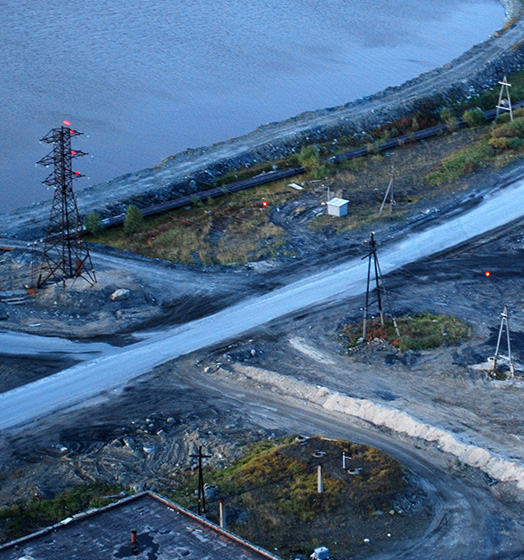

The different product applications

Our BHT complies with the ICAO regulations (Annex 14, chapter 6) and is used as a conductor marking light for High-Voltage Lines.
For lines located near airport platforms it is necessary to set-up a marking every 70 meters, otherwise every 105 meters is enough.
Nonetheless, in both cases, the first beacon must be within 10 meters of distance from the closest pylon.

delta-box_marking_picto-markings-for-high-voltage-line

The technical characteristics

Luminous
Luminous Source
LEDs
Color
Red
Horizontal beam
360°
Vertical beam
10°
Luminous intensity
> 10 & 32 Cd
MTBF
100 000 Hours
Electrical
Voltage lines
1V up to 500kV
Functioning temperature
-55°C to +55°C
Current | min
7A
Current | max
1000A
Protection class
IP66
Mechanical
Body materail
Aluminum ABS
Lens material
Polycarbonate with bird spike
Mounting
Positioning nut
Height
380mm
Width
215mm
Weight
< 6 Kg
Environmental
Humidity
100%
Frost
-60°C
Wind speed
160 Km/h
Certifications
CE
EN60947-1
CEI60364, NF C15-100
2014 / 35 / UE
ICAO
Annex 14, Volume I, Chapter 6
Quality
ISO 9001 ; 2015
Warranty
Warranty period
2 years

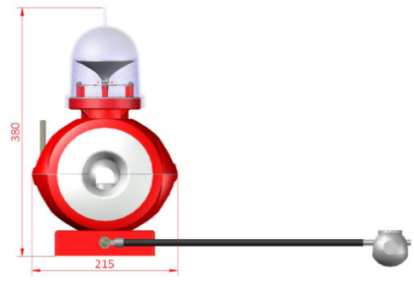

Dimensions

delta-box_marking_aircraft-warning-lights-for-pylons-dimensions-02
